Connect to thermostat PTC10 and gateway PTG10
Strong signal Two relays 433MHz and 868MHz optional

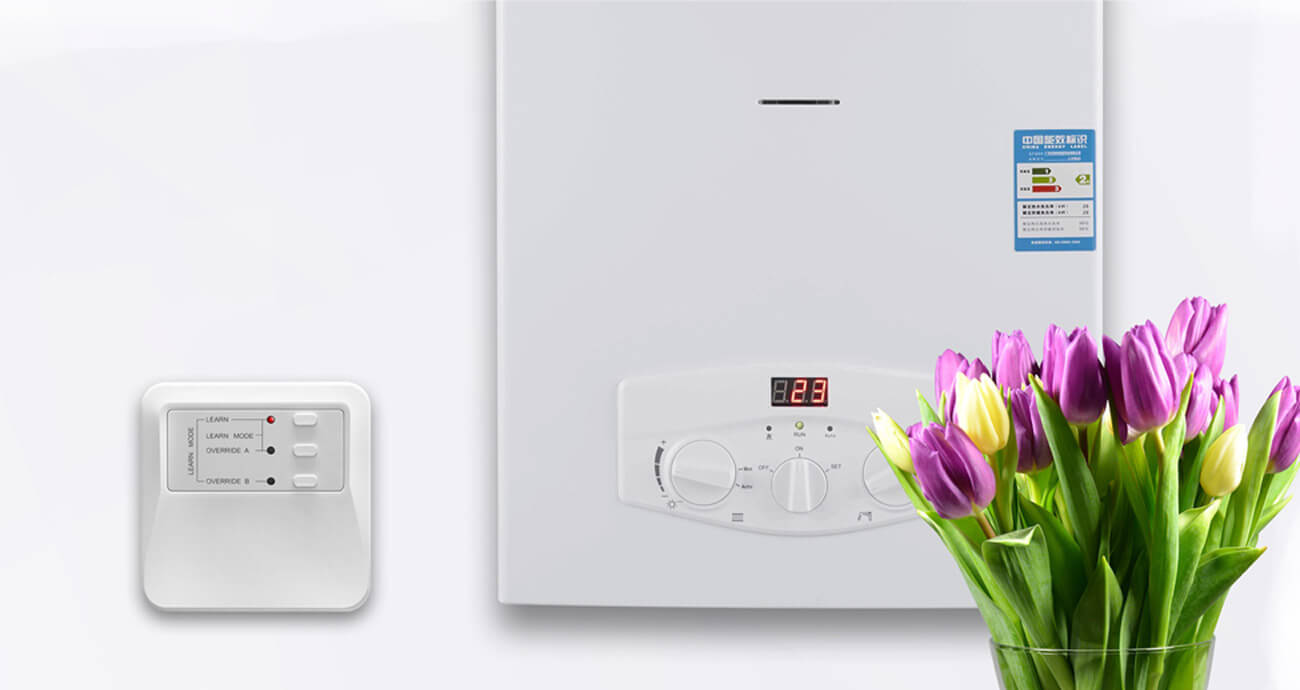

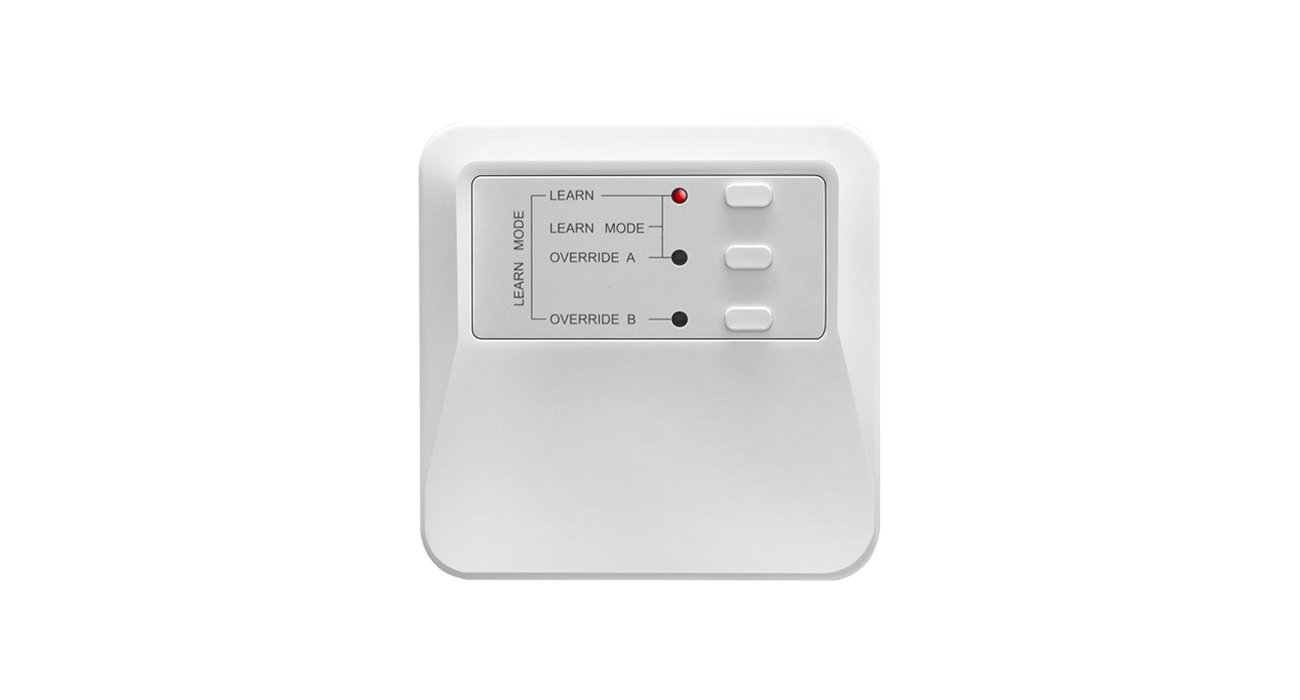

PTR10 has two sets of voltage free contacts. It could be connected to gas boiler
and other equipment which need voltage free relays.
| wireless receiver | |
| Operating Temperature | 0 to 50°C |
| Transmitting frequency | 868 MHz(433 MHz-PTR10-433),Bidirectional |
| Communication Range(open space) | 100 meters |
| Power | <2W |
| Power supply | 100VAC~240VAC, 50Hz |
| Switch rating | 240VAC 50Hz, 24A resistive,16A inductive |
| Switch Type | SPST relay |
| Dimensions (HxWxD) | 100x 85 x 32mm |
| IP class | IP30 |
| Standard | CE |
| Weight | 150g |
