PTC10/PTR16
For electric underfloor heating, electric radiators and other electric heating method
Max. 16A current 20%-30% Cost saving Wireless connection

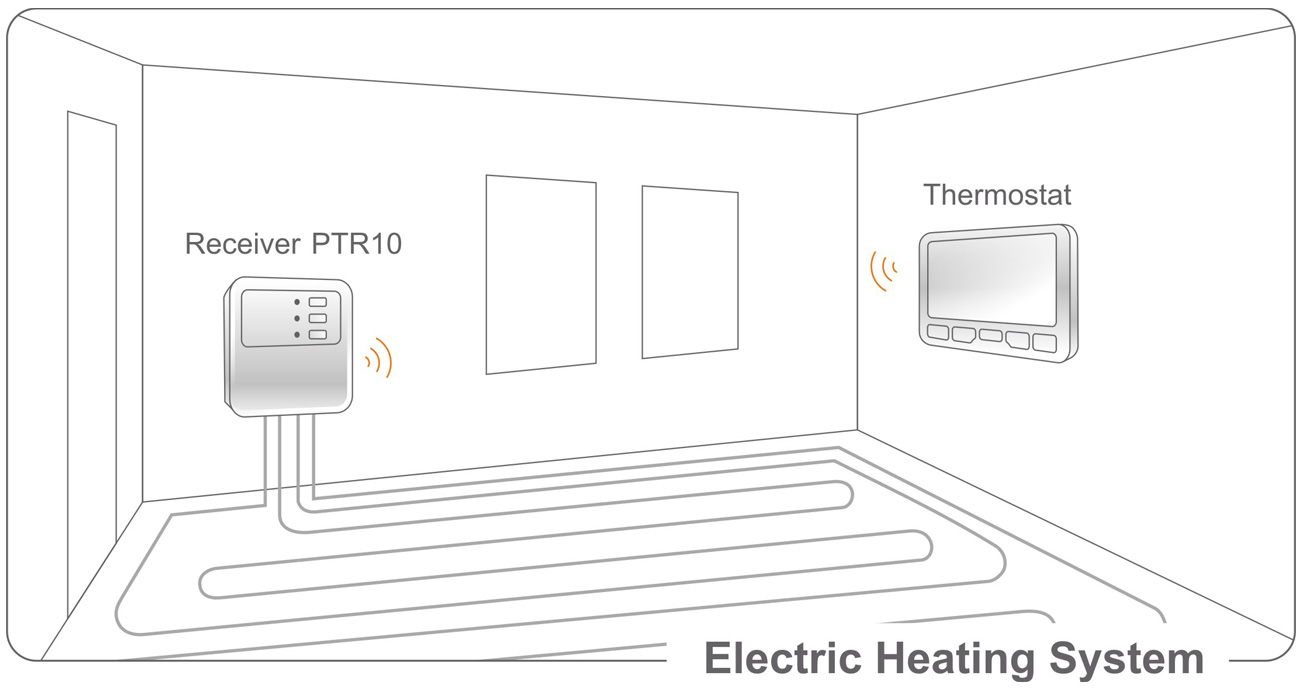

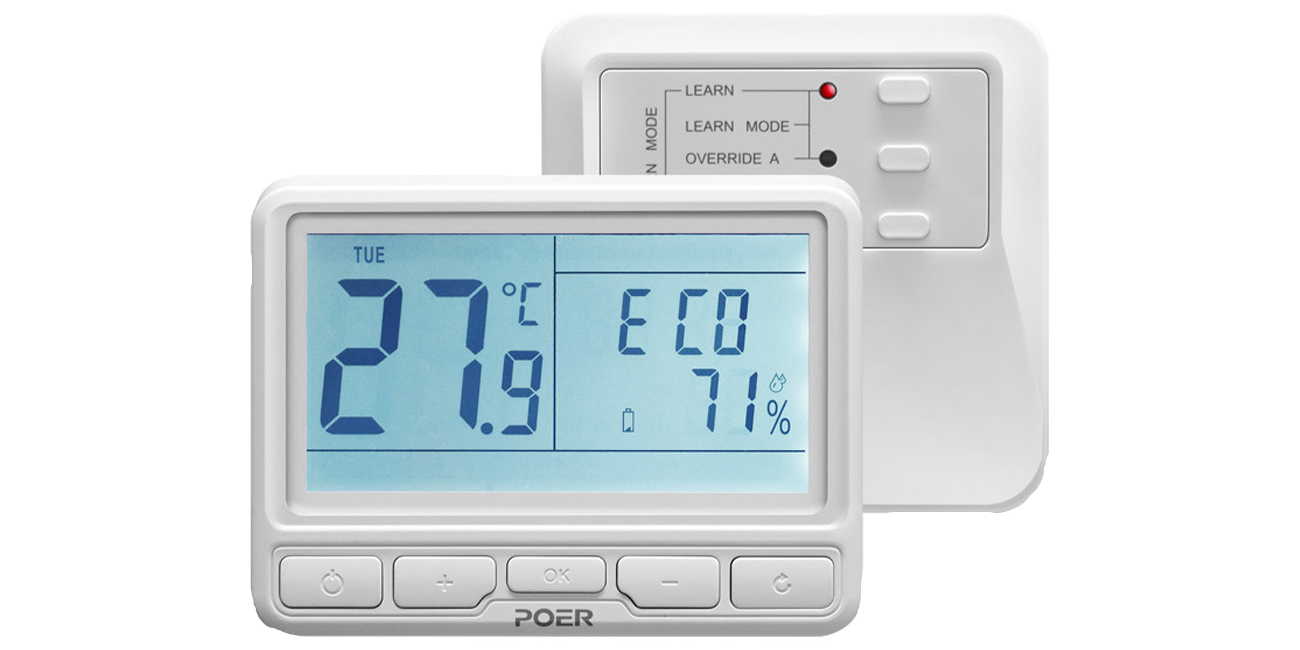

POER wireless thermostat innovatively separates the temperature control and the output part, and connects stably through RF communication. The location of the thermostat placement enables more choices. The thermostat PTC10 has a large 3.5-inch screen and beautiful buttons. The thermostat is driven by 2*AA batteries and can last for 1-2 years with the help of ultra-low power MCU.
PTC10/PTR16 is a new choice for our electric heating applications.
PTC10 contains a temperature sensor and a humidity sensor. The temperature sensor continuously detects the temperature in the room. If the temperature in the room is less than the set value, the thermostat will tell the actuator to start heating or start other heat sources. When the temperature is reached, the heat source is turned off. In this way, the temperature in the room is continuously maintained comfortable and stable. In view of the actual temperature change, the deviation is corrected. We have added temperature deviation modification options. Users can modify the deviation value according to their requirements.
In addition to the first control method, we have also developed a PID control method. The PID control method will calculate the best start and turn off time for the heat source according to the actual situation of the room to make the room temperature more stable and comfortable.
POER thermostat PTC10 temperature control hystersis could be adjusted from 0.1℃ to 1.0℃
PTC10 has a programming function and supports up to 12 segments of programming a day. It can effectively reduce the energy waste of electric heating. Automatically lower the night heating temperature, and turn off the heating when the room is empty. At the same time maintain the comfort of normal life.
Opening window detection
PTC10 has been added with opening window detection function. The thermostat will detect the temperature drop in window opening time and switch off the heating. The Switching off time could be setted from thermostat.
The thermostat plastic housing is made of high-quality materials, and it can maintain its original appearance after long-term use, and it is always as new.
Start your partnership with POER
Poer offers a professional smart heating solution which can improve your customer life quality. To make an great option for your customer and to enhance your customer relationship. Also to make business more sucessful with us. Fill out the form or email us. You will be contacted personally with specialist in first time.
